MDT Short Action Magazine - No Binder Plate

$ 69.99

Brand: MDT

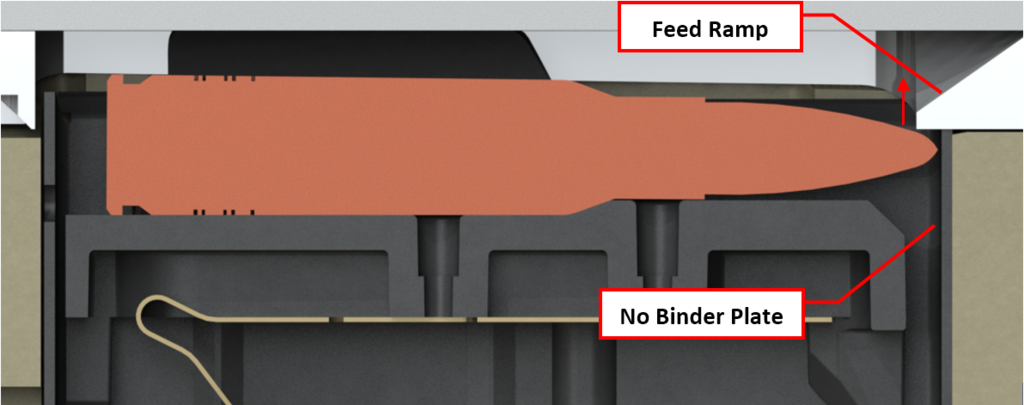

These MDT magazines without front binder plates allow a maximum cartridge overall length of 2.960”. These are compatible with all AICS-pattern bottom metal and chassis systems, but most common actions such as Remington 700 and Savage 10/11 will require modifications to the receiver (i.e. notching out the bottom of the feed ramp) to prevent the bullet tips from catching on the bottom of the feed ramp (see photo below). DO NOT order these magazines without a full understanding of this.

MDT AICS-pattern metal magazines are manufactured from high strength steel, Nitride-finished and coated with Cerakote Elite for ultimate durability, corrosion resistance, and friction reduction.

The MDT 10-round magazines are approximately ¾” shorter in height than standard AICS 10-round magazines due to MDT’s unique Double Stack to Single Feed (DSSF) transition design, allowing easier mag changes when shooting prone. The Bonus Space mags allow a couple more rounds than the regular 10 rounders.

These short action magazines are offered for .308 Win / and most 6.5 and 6mm cases based off of the .308 family of cartridges.

These magazines are constructed with 2 internal ribs that help reduce friction between the cartridge and magazine body and provide a smooth transition from a double stack to single feed at the top of the magazine.



SPECIFICATIONS

  • Regular 10 Round Mag
  • 3.055” Outside Length
  • 2.960” max cartridge overall length (COAL)
  • 3.90” Rear Height
  • Made in USA
  • Bonus Space 10 Round Mag
  • 3.055” Outside Length
  • 2.960” max cartridge overall length (COAL)
  • 4.61” Rear Height
  • Made in USA
