Universal 3 inch 1.5 "D" RAIL
The HP Universal 1.5 Dovetail Arca Swiss rail is light but extremely rigid. It is Arca Swiss compatible and 3 inches in length. It's designed with a center mounting slot to fit a wide variety of chassis and conventional stocks. The Universal rail has a very low and sleek appearance that allows the end user to mount the rail flush with the bottom of the stock or chassis.
It will work with Arca Swiss quick release or thumb screw clamps. All rails are bead blasted mil-spec type III hard anodized.
We offer the following mounting options:

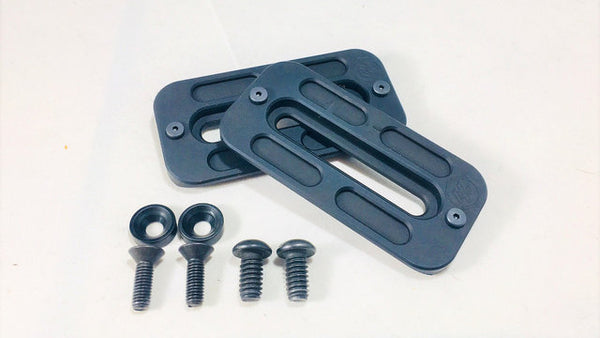

We supply an assortment of mounting hardware that includes a variety of 10-32 screws and weld nuts for hard to fit options like the Foundation Stocks, XLR Carbon, some other Anschutz rails and standard handguards. Many Anschutz rails may require an additional nut kit as well as the chassis hardware found here.
The Universal rail paired with our proprietary MLOK nuts allows you to mount the rail to anything MLOK. The Universal rail will mount directly to your MLOK handguard or chassis even if the MLOK slot spacing is not true MLOK.
-Traditional Stock Kit
The Universal rail paired with our Traditional Stock kit gives you the option to mount an Arca Swiss rail directly to your McMillan or Manner stock. We provide custom hardware and spacers that will need to be embedded in the stock giving your Universal rail a solid base for mounting

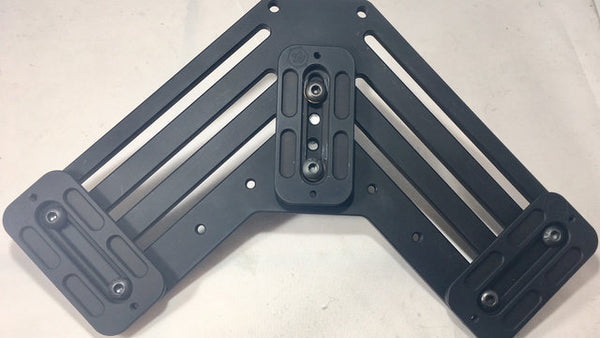

Includes 1/4-20 and 10-32 screws for mounting to our "Universal Optics Mounting Platform"
The Universal rail paired with our proprietary Keymod nuts allows you to mount the rail to anything Keymod. The Universal rail will mount directly to your MLOK handguard or chassis even if the Keymod slot spacing is not true Keymod.
-No Hardware Option
No hardware is also an option if you are the type who likes to make something of your own.
- Weighs 1.4 oz. without hardware
- Bead Blasted Finish
- Mil-Spec Type III Hard Anodized
- Compatible with any ARCA/RRS accessories
- Made in USA
