MDT Send iT Gen 2 SPUHR Mount

$ 24.99

Brand: MDT

See more: Bubble Level
Tags: Electronic Level, Long Range Arms, LRA, mount, Send-iT, SPUHR

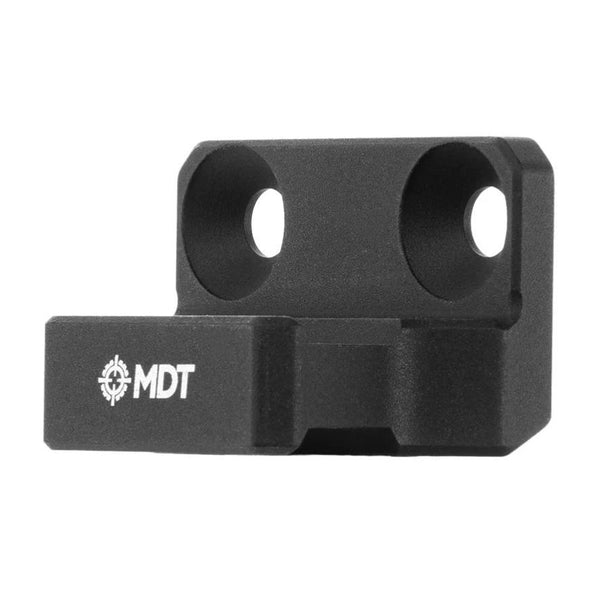

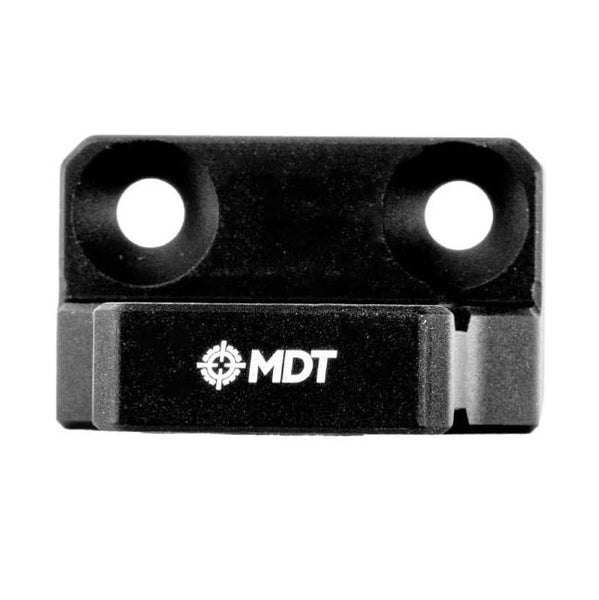

MDT Send iT V-Mount for SPUHR

The MDT 90 Degree Bracket Allows the Send iT Gen II V-Mount electronic level to be mounted directly to a SPUHR  SP, SA, SS, or ST models in the vertical Position.

This mount is only comparable with the Gen II V-Mount model and WILL NOT WORK with the Gen II Direct Mount or Gen I models.

Attention! Some mounts may require SPUHR A-0001: Spacer 4mm to clear scope parallax or windage knob.

Also works with MPA BA Bolt Action Mount

Included:
  • MDT 90 Degree Bracket for SPUHR
  • M3 X 0.5 - 10mm BHCS BO TD (3x) (for level attachment)
  • M4 X 0.7 - 8mm FHCS BO TD (2x) (for SPUHR mount attachment)

Not compatible with 36mm scope tubes.

**Warning**  Screw lengths MUST be checked PRIOR to attaching the mounts. In some applications the screw can “bottom out” against the scope tube or damage other components if the screw length is excessive or the wrong size/thread pitch is used. YOU are RESPONSIBLE to check the length and size of screws and verify interferences before final assembly. LRA is not liable for damage to our products or the products they are being mounted or attached to.

MDT Send iT V-Mount Level Sold Separately Here.

  • Mounts directly to SPUHR One Piece Scope Base
  • Allows Convenient Vertical Mounting

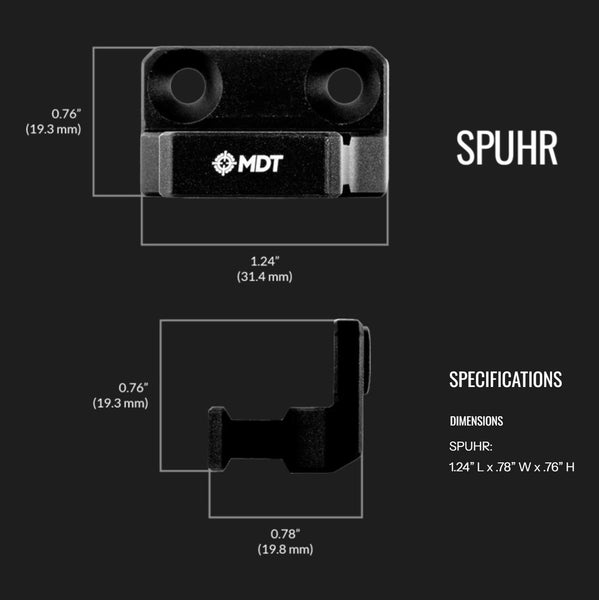

  • Dimensions 1.24” L x .78” W x .76” H
  • Weight  0.51oz / 0.032lbs
  • Anodized Aluminum
  • MDT P/N 108741-BLK
